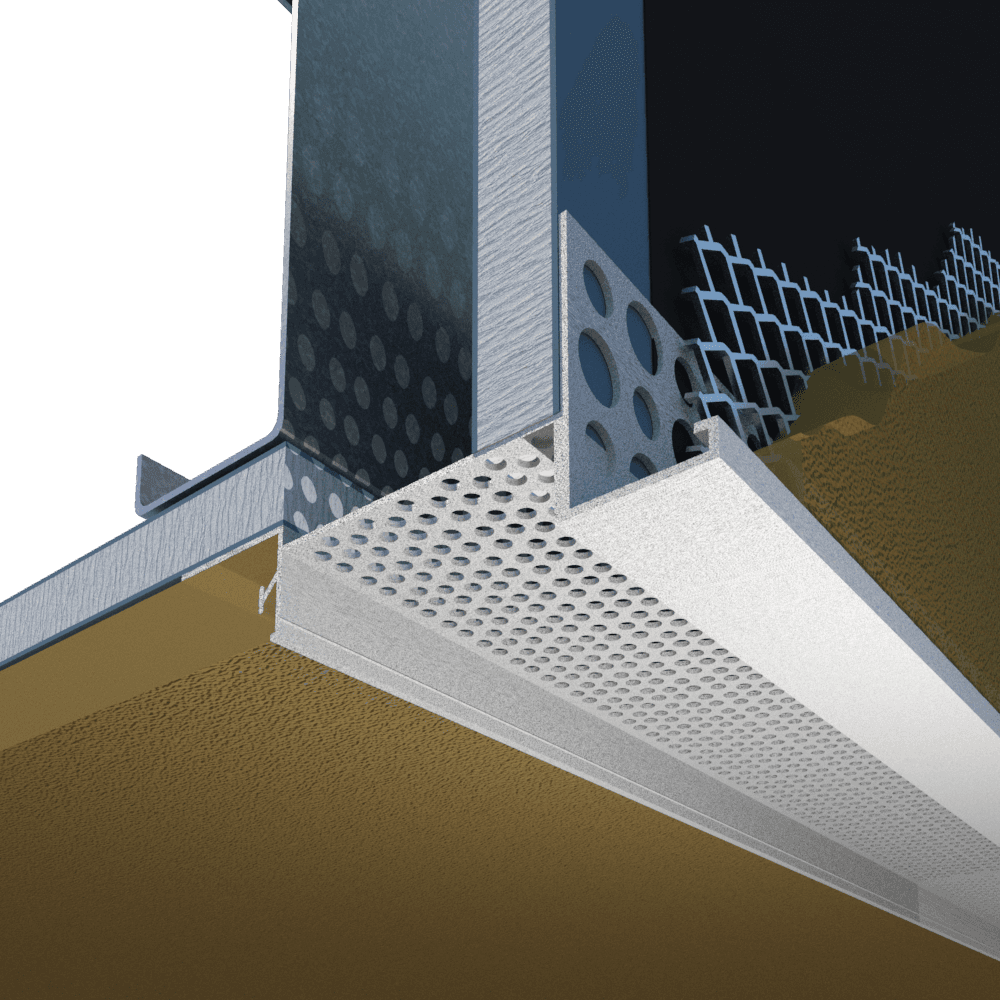

Vented Drip Screed
Designed to address finishing the plaster to the vertical soffit area intersection
When a drip and soffit vent need to be combined.
Quick Actions:
Designed to address finishing the plaster to the vertical soffit area intersection when a drip and soffit vent need to be combined. Vent clips are provided to connect vented drip screed and assist in alignment.
Product Data & Ordering Information
| Product code | Ground | Vent width | Flange | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| DCS50-200V | 1/2" | 2" | 1-3/4" | 8 sq. in. | 14 |
| DCS75-200V | 3/4" | 14 | |||
| DCS78-200V | 7/8" | 14 | |||
| DCS100-200V | 1" | 14 | |||
| DCS50-300V | 1/2" | 3" | 1-3/4" | 15 sq. in. | 12 |
| DCS75-300V | 3/4" | 12 | |||
| DCS78-300V | 7/8" | 12 | |||
| DCS100-300V | 1" | 12 | |||
| DCS50-400V | 1/2" | 4" | 1-3/4" | 16 sq. in. | 10 |
| DCS75-400V | 3/4" | 10 | |||
| DCS78-400V | 7/8" | 10 | |||
| DCS100-400V | 1" | 10 | |||
| DCS50-600V | 1/2" | 6" | 1-3/4" | 18 sq. in. | 10 |
| DCS75-600V | 3/4" | 10 | |||
| DCS78-600V | 7/8" | 10 | |||
| DCS100-600V | 1" | 10 |
Note: Dissimilar grounds may be specified.
