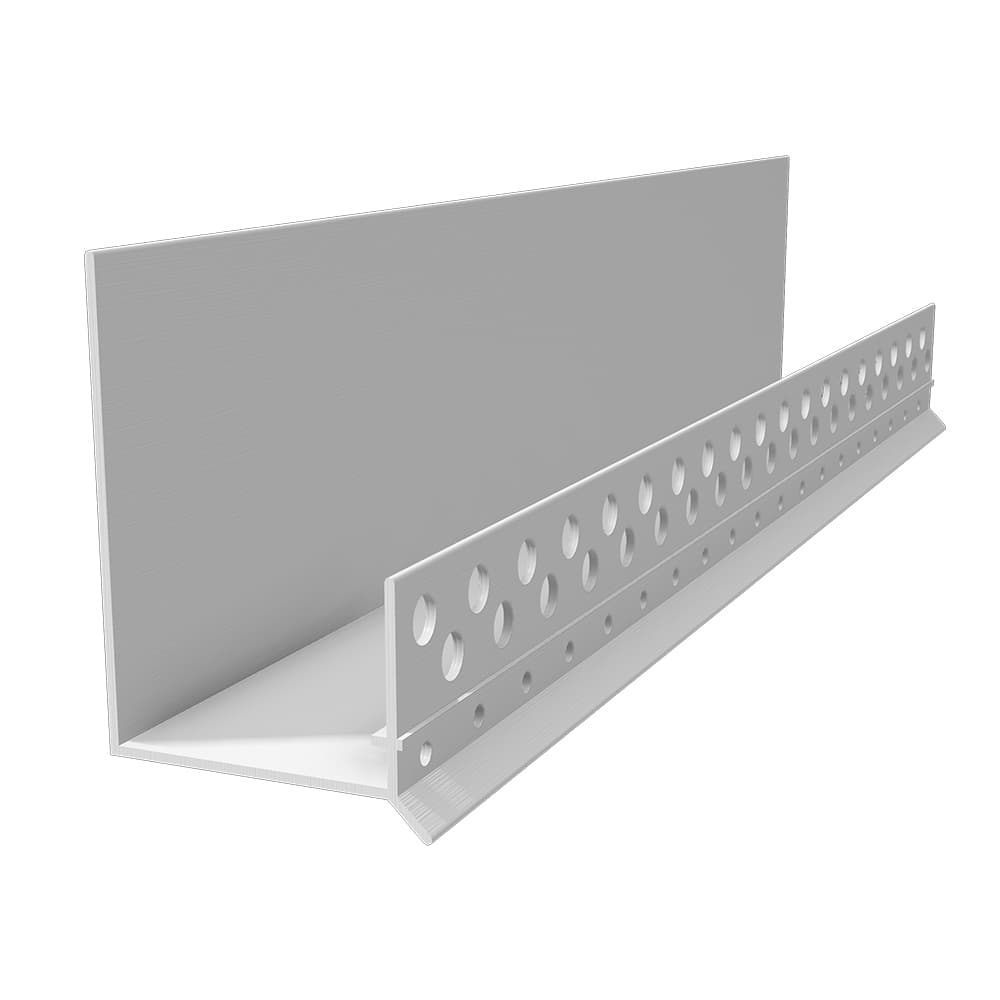

Weeped Starter Track
One-piece support starter track designed with weep holes and an extended drip leg

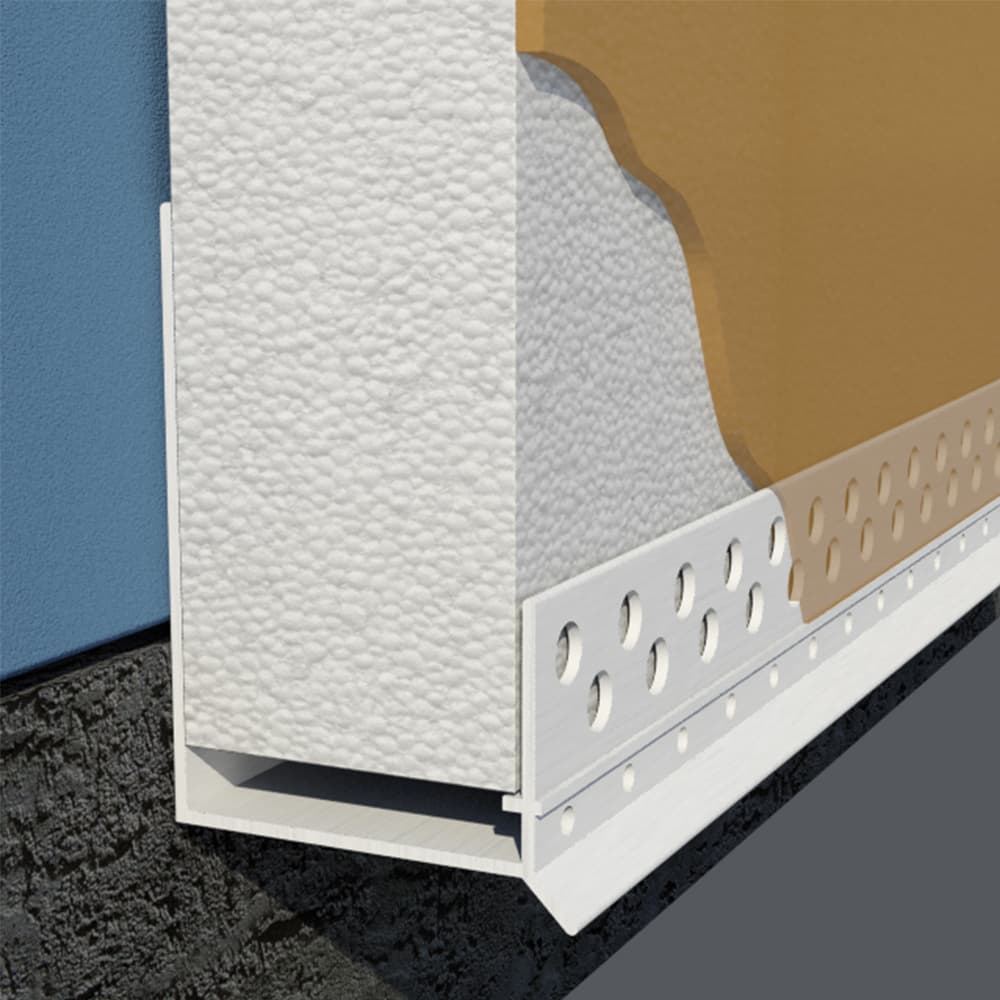

Moves moisture away from opening headers in Exterior Insulation Finish Systems (EIFS).
Quick Actions:
One-piece support starter track designed with weep holes and an extended drip leg to move moisture away from opening headers in Exterior Insulation Finish Systems (EIFS).
Includes the Keylock™ Splice for connecting multiple sections and to assist in their alignment. Caulk all intersections, butt joints, ends, and corners at the time of installation.
Product Data & Ordering Information

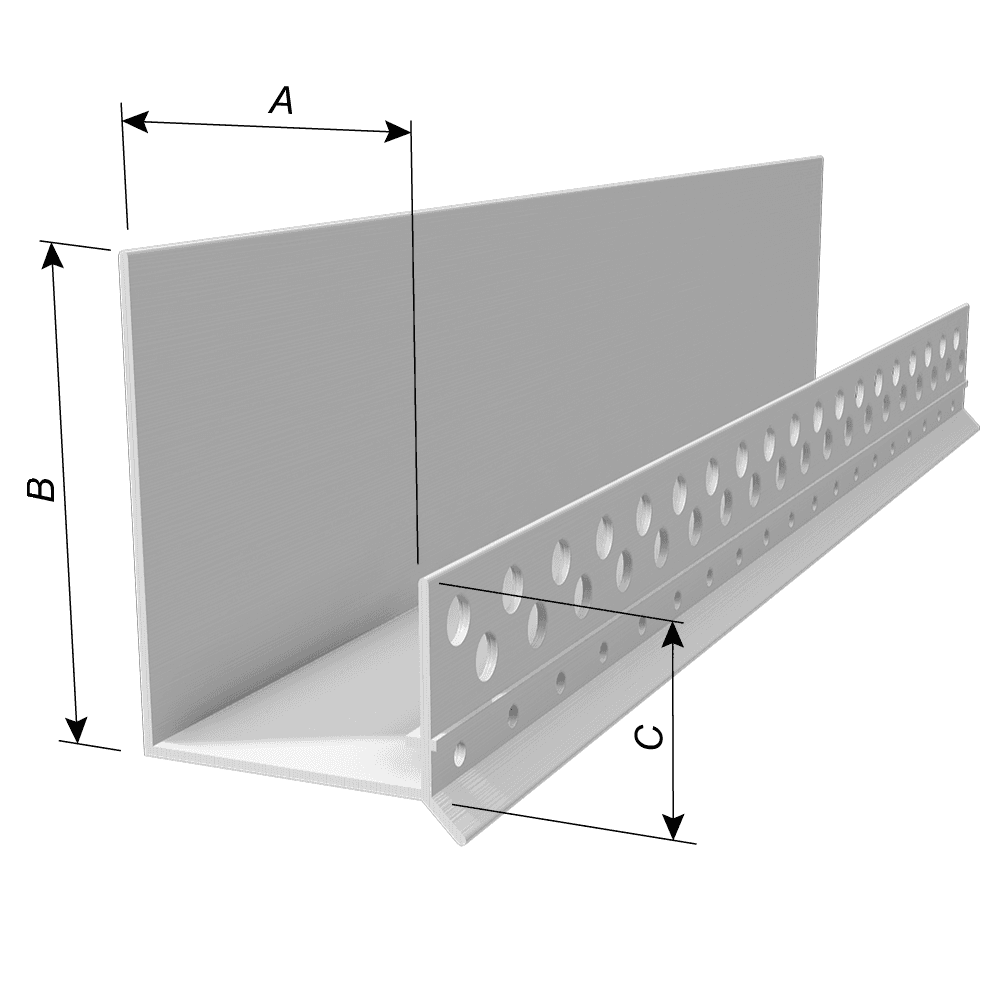

| Product code | Finish thickness | Insulation thickness (A) | Back flange (B) | Perforated flange (C) | Pcs./Box |
|---|---|---|---|---|---|
| DCBSV-50-332 | 3/32" | 1/2" | 2-1/2" | 3/4" | 20 |
| DCBSV-75-332 | 3/32" | 3/4" | 2-1/2" | 3/4" | 20 |
| DCBSV-100-332 | 3/32" | 1" | 2-1/2" | 3/4" | 15 |
| DCBSV-150-332 | 3/32" | 1-1/2" | 2-1/2" | 3/4" | 10 |
| DCBSV-200-332 | 3/32" | 2" | 2-1/2" | 3/4" | 10 |
| DCBSV-250-332 | 3/32" | 2-1/2" | 2-1/2" | 3/4" | 10 |
| DCBSV-300-332 | 3/32" | 3" | 2-1/2" | 3/4" | 10 |
| DCBSV-400-332 | 3/32" | 4" | 2-1/2" | 3/4" | 10 |
U.S. Patent Numbers 5,970,671 and 6,134,847
